Product Features:
Features a 2 year manufacturer warranty

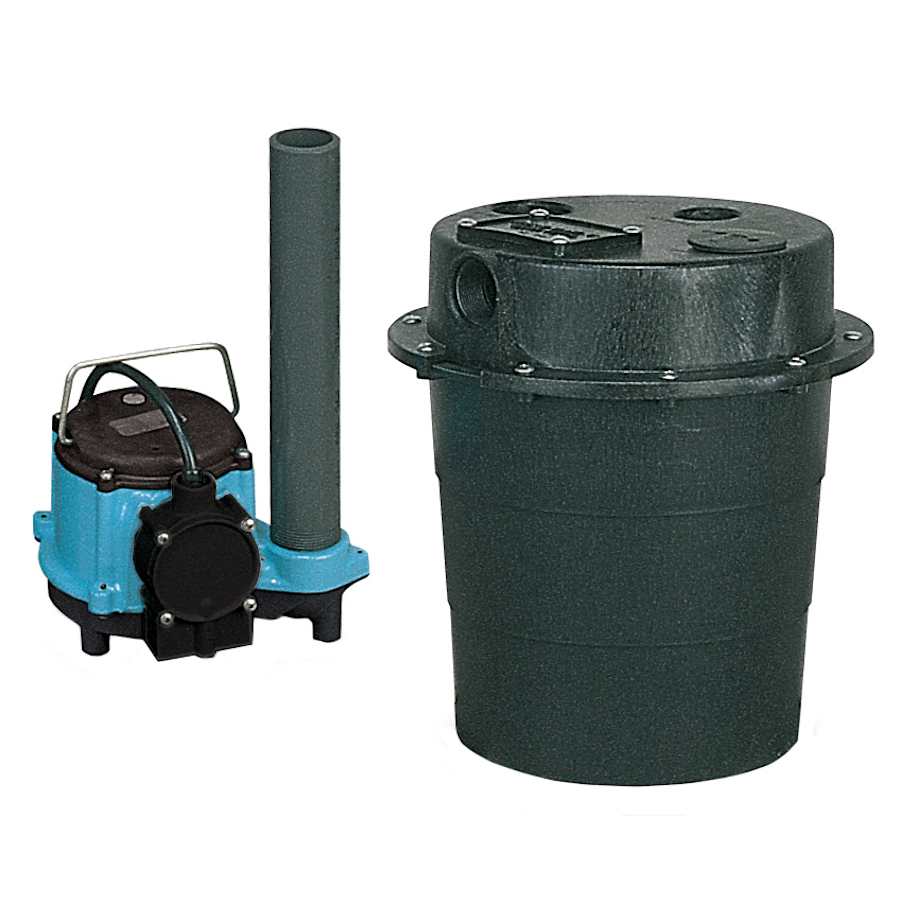

The Drainosaur water removal system is ideal for below grade sinks and wash machines
Features a pre-assembled design that makes installing this system and easy task
Contractor-grade cast iron submersible sump pump with protective epoxy coating provides excellent corrosion resistance
1/3 HP shaded pole motor with thermal overload protection with oil-filled motor housing provides lower operating temperatures
The integral diaphragm pressure switch provides lower operating temperatures
5 gallon cylindrical polypropylene tank that is great for applications with higher water volume
Easy removable screened intake provides added protection and easy cleaning
Built-in O-rings and rubber cord grommet allows the basin to be water tight
Threaded connection for easy installation; 1-1/2″ intake and discharge, 2″ vent
Features an IAPMO approved basin and an 8′ power cord
Product Specifications:

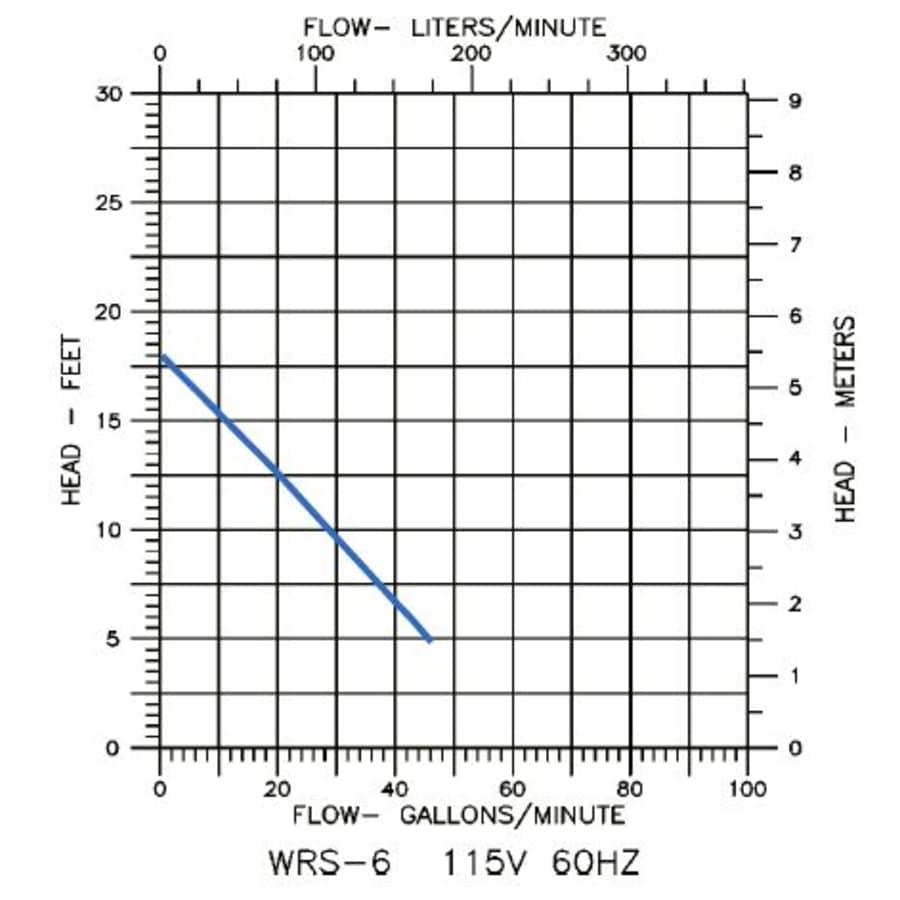

GPH @ 0 feet: 2700
GPH @ 5 feet: 7000
GPH @ 10 feet: 1740
GPH @ 15 feet: 720
GPH @ 20 feet: Off
Discharge Port Size: 1-1/2″
Dimensions: 14.5″ wide by 15.56″ high
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 15.56 in. |
| Product Weight | 26 lbs. |
| Width | 14.5 in. |
| Length | 14.5 in. |
| Water Connection | 1-1/2" |
| Discharge Diameter | 1.5 in. |
| Cord Length | 108, 10 in. |
| Flow Rate by Feet of Head | 12 gal / 15 ft, 29 gal / 10 ft, 45 gal / 5 ft |
| Shut Off Height | 18 in. |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Diaphragm |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| CARB approved | Yes |
| Voltage | 115 |
| Wattage | 720 |
| Frequency | 60 Hertz |
| Amperage | 9 |
| Horsepower | .33, .34 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
| Color | Steel |
| Color Tone | Steel Tones |
