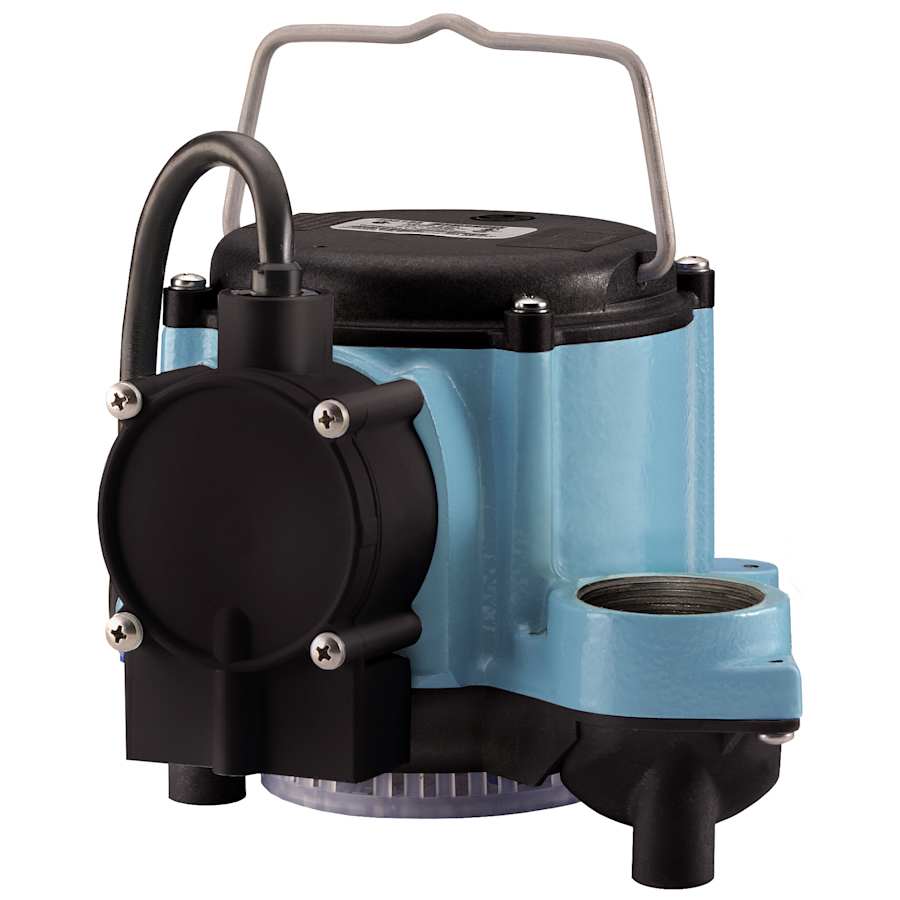

Big John 1/3 HP 230V 46 GPM Submersible Sump Pump with Integral Diaphragm Switch
For residential and light commercial use, the automatic, 1/3 HP 6-CIA sump pump provides efficient and reliable service. Pump has a 1-1/2″ discharge with an 18′ maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.
1/3 HP shaded pole motor with overload protection
Designed for continuous duty
Epoxy coated cast iron housing
1-1/4″ (31.7 mm) adapter and 3/4″ (19 mm) garden hose adapter available
Carbon/ceramic shaft seal
Upper and lower sintered sleeve bearings
Multiple switch options for automatic operation
Multiple power cord lengths available
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Product Weight | 18.5 lbs. |
| Depth | 9.5 in. |
| Height | 6 in. |
| Width | 8.5 in. |
| Length | 9.5 in. |
| Water Connection | 1-1/2" |
| Cord Length | 10 in. |
| Discharge Diameter | 1.5 in. |
| Water Pressure (Max) | 7.8 PSI |

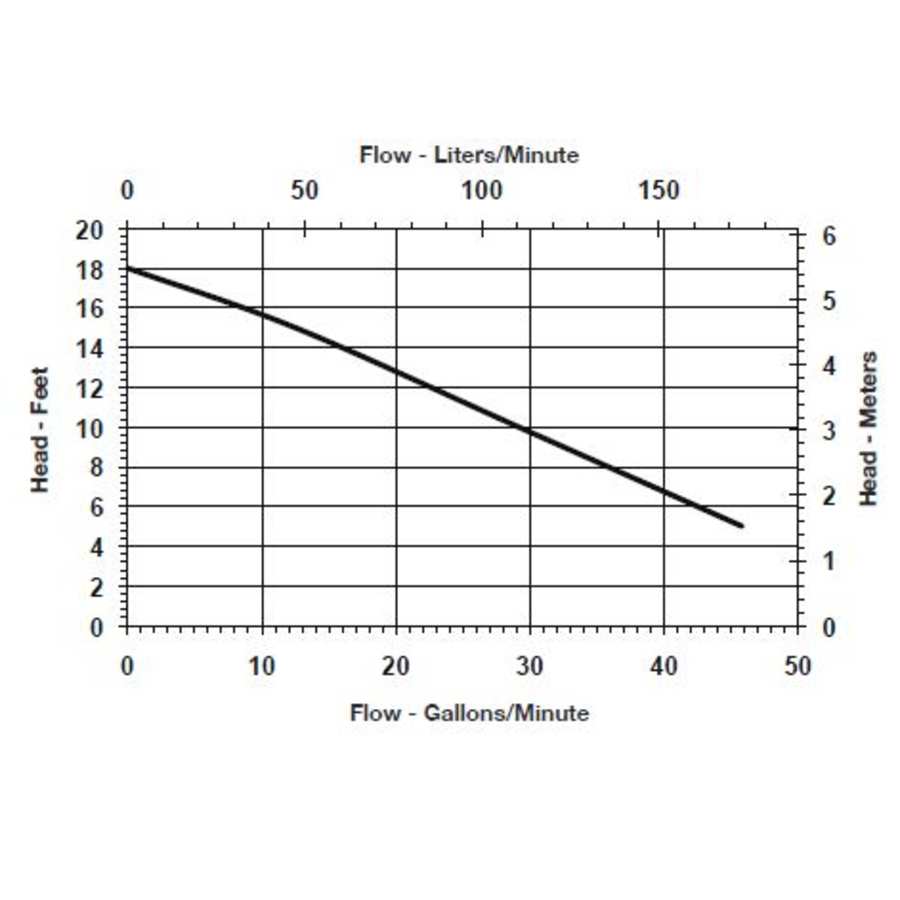

| Flow Rate by Feet of Head | 29 gal / 10 ft, 46 gal / 5 ft, 12.5 gal / 15 ft |
| Shut Off Height | 18 in. |
| Shut Off Pressure | 7.8 |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Configuration | Submersible Pump |
| Switch Type | Diaphragm |
| Automatic | Yes |
| Shutoff Head in Feet | 18 |
| Submersible | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron, Polycarbonate |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Certifications | UL |
| Frequency | 60 Hertz |
| Voltage | 230 |
| Wattage | 720 |
| Amperage | 4.5 |
| Horsepower | 0.33, 0.34 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
| Color | Steel |
| Color Tone | Steel Tones |
