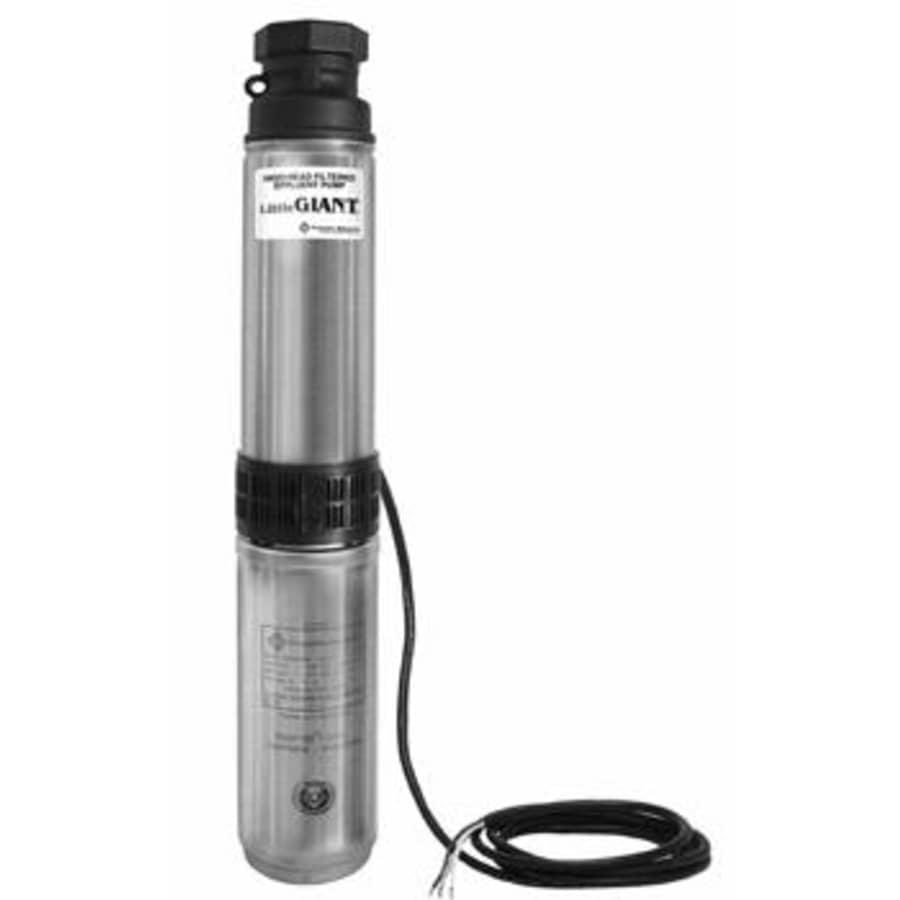

WE Series 230V 26 GPM High Head Filtered Effluent Pump
Used where filtered effluent must be transferred under pressure. Combines Little Giant pump with Franklin Electric 4″ submersible motor.
1/2 HP Franklin Electric Super Stainless submersible motor with built-in lighting protection
Heavy duty, 300v, 10′ SJOW motor stripped leads
1-1/4″ FNPT discharge
26 GPM @ 25 ft. of Head
Removable built-in check valve
Non-corrosive thermoplastic discharge and motor brackets
High quality top bearing for maximum durability and years of reliable service
Hex rubber bearing has extra-large surface for shaft stability and multiple flow channels for keeping particles away from bearing surfaces
Stainless steel up thrust washer prevents excessive wear in service applications
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Depth | 4 in. |
| Width | 4 in. |
| Height | 31 in. |
| Discharge Diameter | 1.25 in. |
| Cord Length | 120 in. |
| Flow Rate by Feet of Head | 26 gal / 25 ft, 24 gal / 50 ft, 16 gal / 100 ft, 11 gal / 150 ft |
| Shut Off Height | 160 in. |
| Material | Stainless Steel |
| Configuration | Effluent Pump |
| Submersible | Yes |
| Voltage | 230 |
| Wattage | 670 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Horsepower | .5 |
