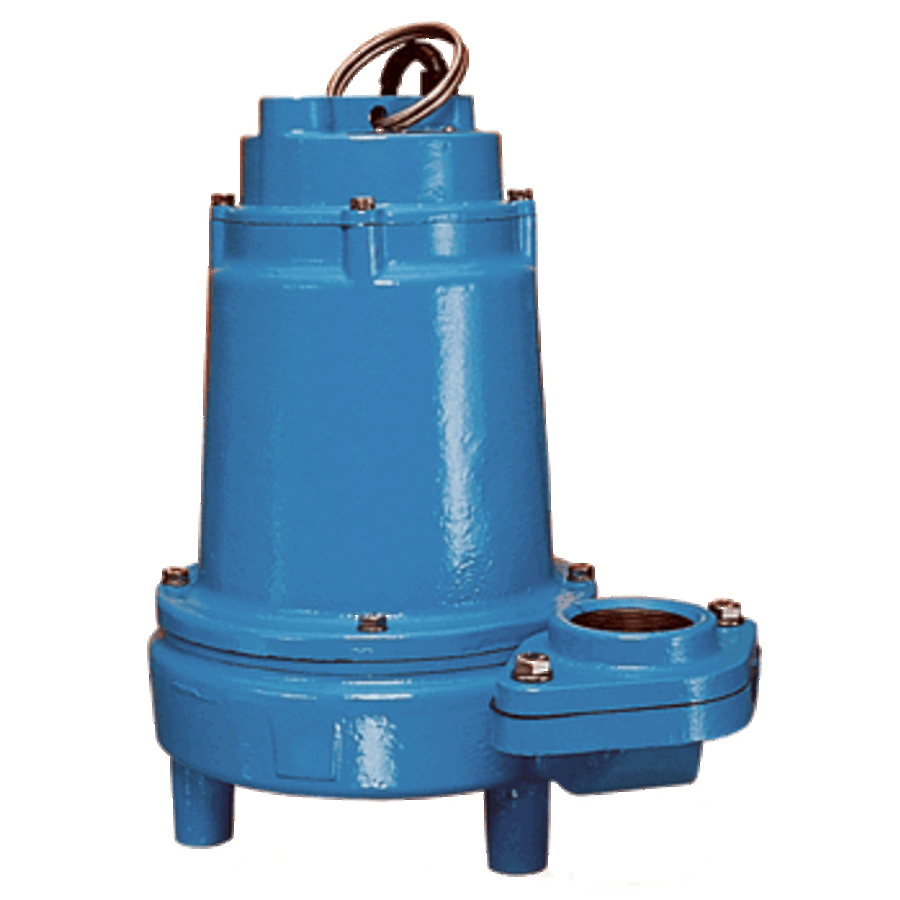

The 16EH Series consists of submersible effluent pumps from Little Giant that are specifically engineered to handle the tough demanding tasks for wastewater and effluent waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:
1 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 3/4″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Cast iron
Switch Type: Manual
Single phase operation
20′ Cord included
UL/CSA listed
Product Specifications:
1 Horse Power
Voltage: 208V – 240V
6.6 Amp maximum operation
2″ Discharge diameter
Length: 14-1/10″
Width: 9-9/10″
Height: 16-1/5″
Flow rates (GPH: gallons-per-hour):
At 30 feet of head: 90
At 40 feet of head: 70
Shut Off (maximum head height): 81′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 16EH Collection
Specifications
| Height | 16.2 in. |
| Width | 9.9 in. |
| Product Weight | 82 lbs. |
| Length | 14.1 in. |
| Depth | 14.1 in. |
| Water Connection | 2" |
| Cord Length | 240 in. |
| Discharge Diameter | 2 in. |
| Flow Rate by Feet of Head | 70 gal / 40 ft, 90 gal / 30 ft |
| Shut Off Height | 81 in. |
| Shut Off Pressure | 35.1 |
| Maximum Head Height | 81 in. |
| Minimum Head Height | 30 in. |
| Water Pressure (Max) | 35.1 PSI |
| Maximum Diameter Solids | .75, 0.75 in. |
| Material | Cast Iron |
| Switch Type | Manual |
| Configuration | Sump / Effluent Pump |
| Water Connection Type | NPT |
| Submersible | Yes |
| Shutoff Head in Feet | 81 |
| Automatic | No |
| Impeller Material | Cast Iron |
| Material Casing | Iron |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Wattage | 1350 |
| Voltage | 208, 240 |
| Frequency | 60 Hertz |
| Amperage | 6.6 |
| Horsepower | 1 |
| Electrical Phases | 1, 3 |
| Maximum Fluid Temperature | 140 °F |
