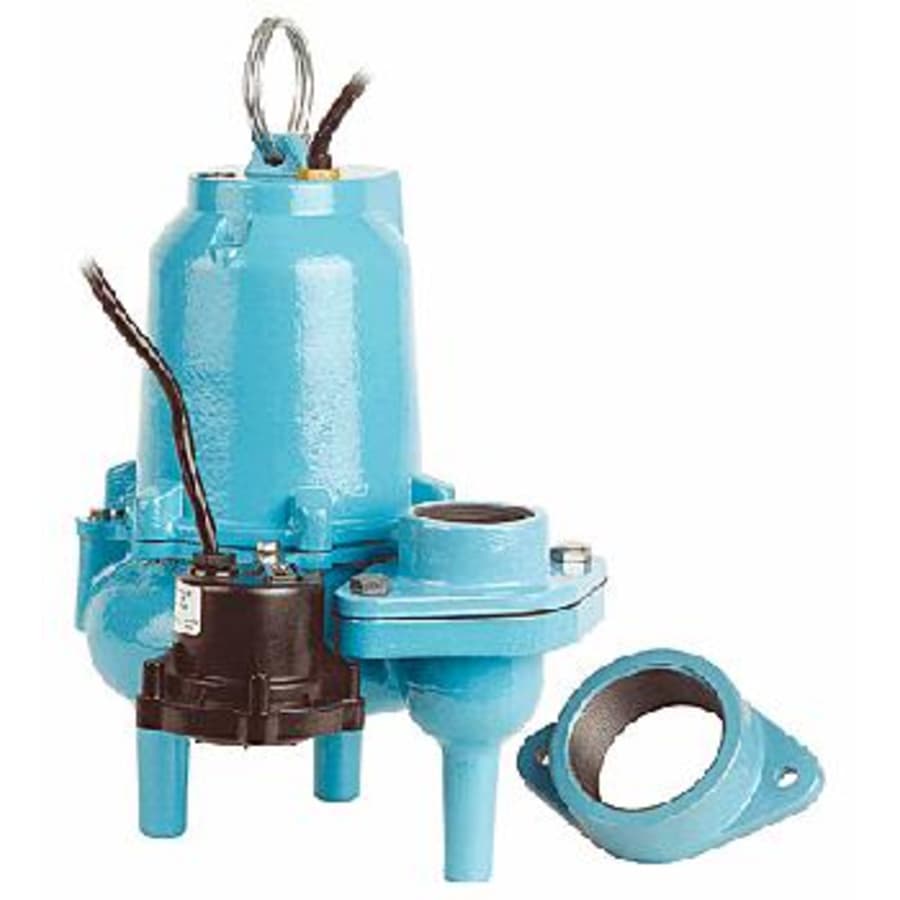

6/10 HP 155 GPM Energy Saver Submersible Sewage Pump with Piggyback Diaphragm Switch
The ES60 model pumps from Little Giant are energy-saving, high performance, fully submersible sewage/effluent/high-capacity sump pumps, designed for the professional plumbing contractor. The ES Series Pumps draw less energy while delivering greater pump flow and overall performance.
6/10 HP permanent spilt capacitor motor with energy-saving low amp draw
Designed for continuous duty
Epoxy coated cast iron housing and volute
2″ FNPT (51 mm) discharge / 3″ (76 mm) flange included
Carbon/ceramic shaft seal
Upper and lower ball bearings
Cast iron 2 vane non-clog impeller
Thermal overload protection
Piggyback Diaphragm Switch
Float On Level: 15.5″ – 14.5″
Float Off Level: 5.5″ – 4.5″
cCSAus listed
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 14.75 in. |
| Depth | 12 in. |
| Width | 10.8 in. |
| Product Weight | 68 lbs. |
| Cord Length | 240 in. |
| Discharge Diameter | 2, 3 in. |
| Flow Rate by Feet of Head | 98 gal / 15 ft, 29 gal / 25 ft, 155 gal / 5 ft, 70 gal / 20 ft, 127 gal / 10 ft |
| Shut Off Height | 28 in. |
| Shut Off Pressure | 12.1 |
| Maximum Diameter Solids | 2 in. |
| Material | Rubber, Steel |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Amperage | 10.3 |
| Horsepower | .6 |
| Certifications | CSA |
| Color | Steel |
| Color Tone | Steel Tones |
