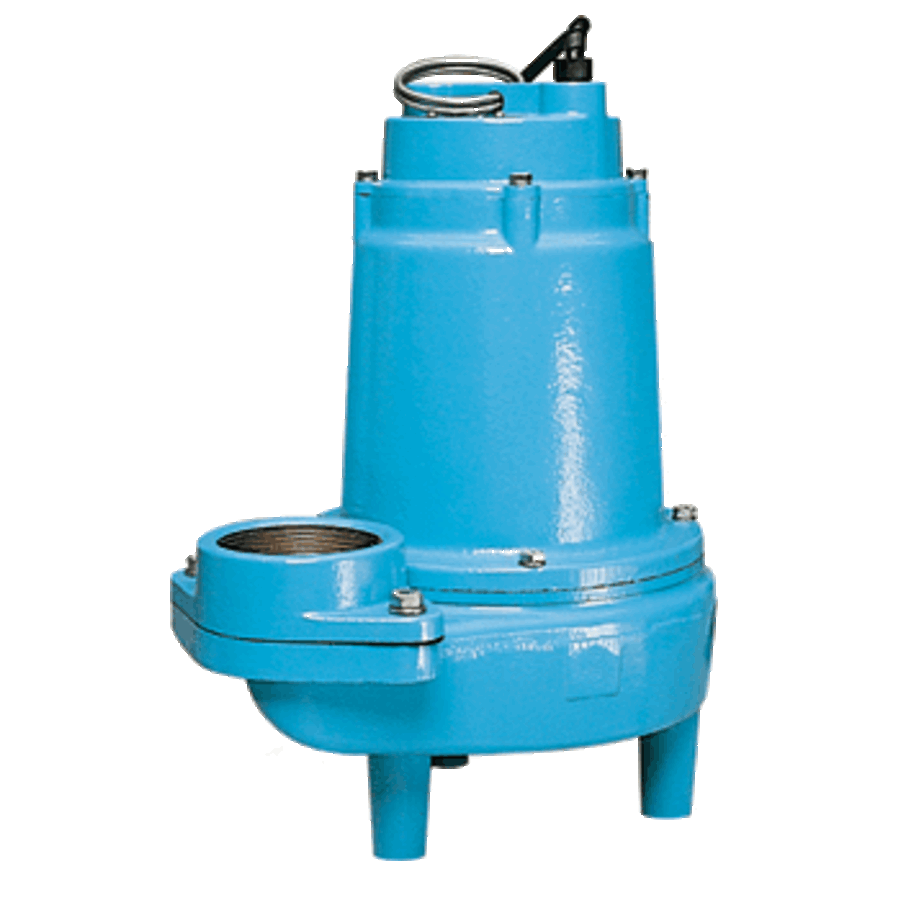

1 HP 160 GPM 230V Manual Submersible Sewage Ejector Pump
The Eliminator(R) submersible pump series from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.
1 HP permanent split capacitor motor with overload protection (single phase models)
Designed for continuous duty
20 foot power cord without plug
Epoxy coated cast iron housing, cover and volute
3″ FNPT (76 mm) discharge
Carbon/ceramic shaft seal
Two vane non-clog epoxy coated cast iron impeller
Upper and lower ball bearings
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Height | 17.2 in. |
| Width | 9.9 in. |
| Length | 14.1 in. |
| Product Weight | 94 lbs. |
| Water Connection | 2" |
| Depth | 9.89 in. |
| Cord Length | 240 in. |
| Discharge Diameter | 3 in. |

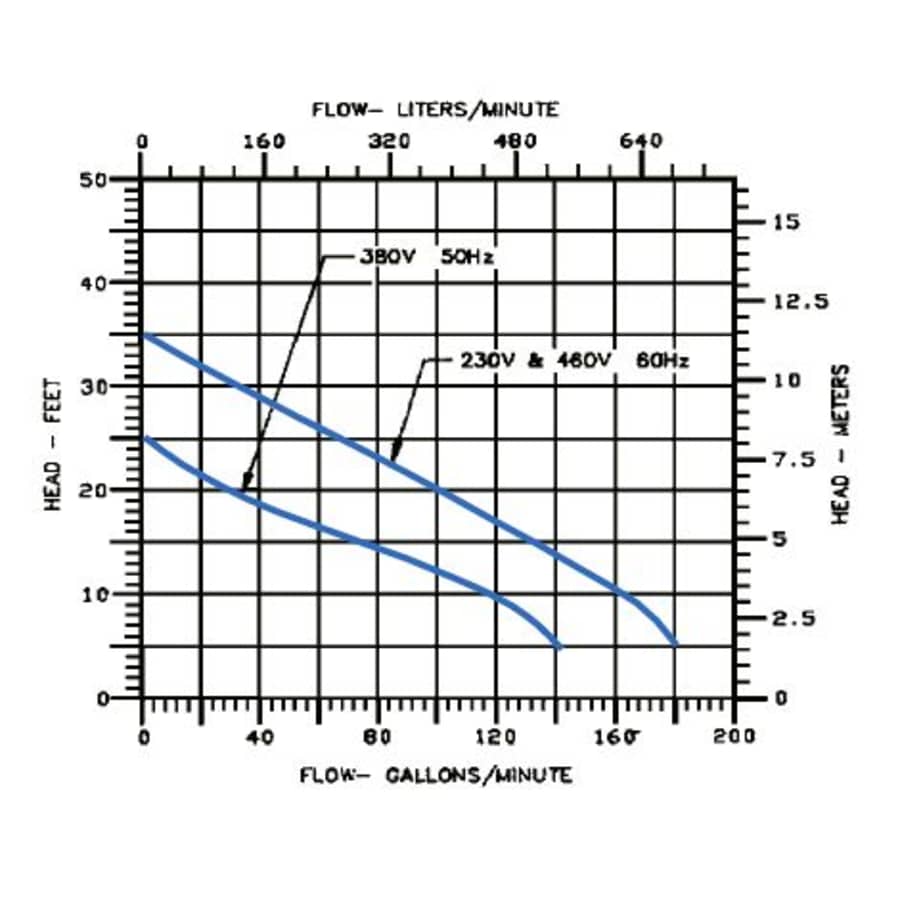

| Flow Rate by Feet of Head | 100 gal / 20 ft, 40 gal / 30 ft, 160 gal / 10 ft |
| Maximum Diameter Solids | 2 in. |
| Maximum Head Height | 35 in. |
| Minimum Head Height | 10 in. |
| Shut Off Height | 35 in. |
| Water Pressure (Max) | 15.1 PSI |
| Shut Off Pressure | 15.1 |
| Material | Cast Iron |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Automatic | No |
| Impeller Material | Cast Iron |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 35 |
| Submersible | Yes |
| Voltage | 230 |
| Wattage | 1900 |
| Amperage | 11 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Horsepower | 1 |
| Maximum Fluid Temperature | 140 °F |
