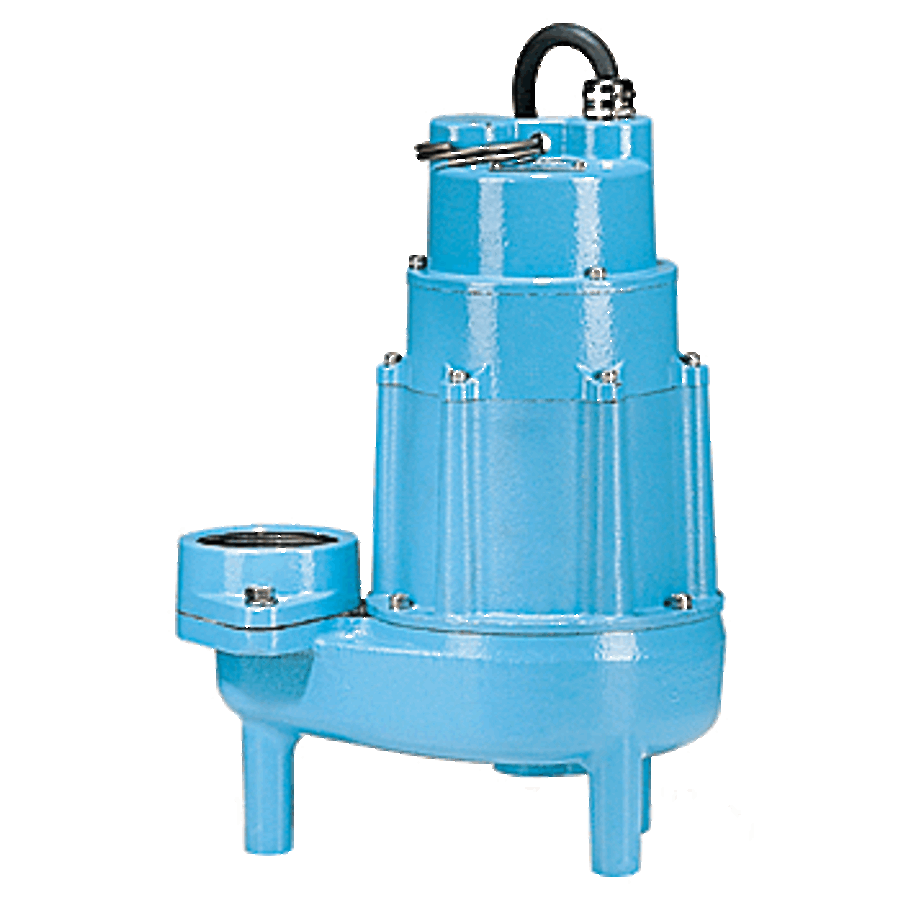

The 20S Series submersible pumps from Little Giant are specifically engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:
2 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Brass
Switch Type: Manual
Triple phase operation
20′ Cord included
UL/CSA listed
Product Specifications:
2 Horse Power
Voltage: 230V
12.6 Amp maximum operation
3″ Discharge diameter
Length: 12-9/10″
Width: 8-2/5″
Height: 19-1/10″
Flow rates (GPH: gallons-per-hour):
At 10 feet of head: 205
At 20 feet of head: 168
At 30 feet of head: 140
At 40 feet of head: 120
Shut Off (maximum head height): 77′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 20S Collection
Specifications
| Width | 8.42 in. |
| Height | 19.07 in. |
| Length | 12.93 in. |
| Product Weight | 94 lbs. |
| Depth | 12.93 in. |
| Water Connection | 3" |
| Cord Length | 240 in. |
| Water Pressure (Max) | 33.3 PSI |
| Discharge Diameter | 3 in. |
| Flow Rate by Feet of Head | 140 gal / 30 ft, 120 gal / 40 ft, 168 gal / 20 ft, 205 gal / 10 ft |
| Maximum Head Height | 77 in. |
| Minimum Head Height | 10 in. |
| Shut Off Height | 77 in. |
| Shut Off Pressure | 33.3 |
| Maximum Diameter Solids | 2 in. |
| Approved for Commercial Use | Yes |
| Certifications | CSA |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Configuration | Submersible Pump |
| Automatic | No |
| Impeller Material | Brass |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 77 |
| Submersible | Yes |
| Voltage | 230 |
| Frequency | 60 Hertz |
| Amperage | 12.6 |
| Electrical Phases | 3 |
| Horsepower | 2 |
| Maximum Fluid Temperature | 140 °F |
