Typical applications include basement sumps. VS-P Series pumps are designed for residential and light to moderate commercial duty.
Product Features:
1/3 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Does not handle solid particulates
Cover made from: Plastic
Housing made from: Plastic
Impeller Type: Non-clog
Impeller made from: Nylon
Switch Type: Snap action
Single phase operation
8′ Cord included
cCSAus listed
Product Specifications:
1/3 Horse Power
Voltage: 115V
4 Amp maximum operation
1-1/4″ Discharge diameter
Length: 9-3/5″
Width: 9-3/5″
Height: 32-1/5″

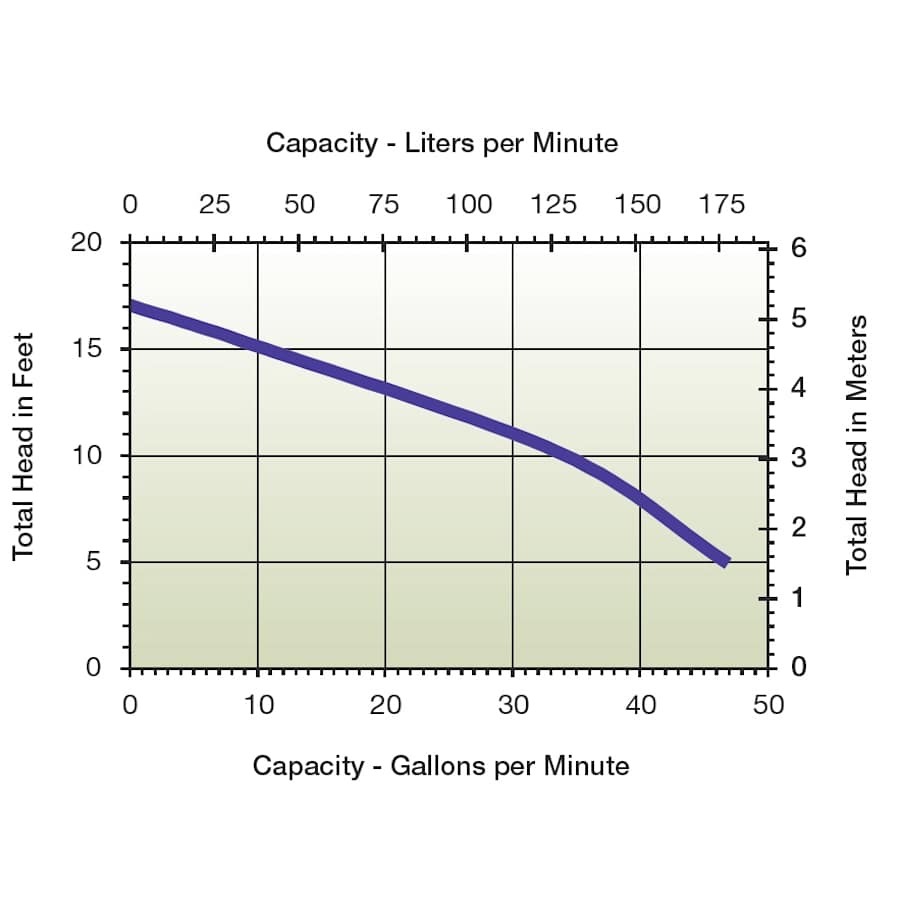

Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 2800
At 10 feet of head: 2040
At 15 feet of head: 620
Shut Off (maximum head height): 17′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 31.2 in. |
| Width | 9.6 in. |
| Depth | 9.52 in. |
| Length | 9.6 in. |
| Product Weight | 16 lbs. |
| Water Connection | 1-1/4" |
| Cord Length | 96 in. |
| Discharge Diameter | 1.25 in. |
| Flow Rate by Feet of Head | 34 gal / 10 ft, 46.6 gal / 5 ft, 10.3 gal / 15 ft |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Shut Off Height | 17 in. |
| Shut Off Pressure | 7.4 |
| Water Pressure (Max) | 7.4 PSI |
| Maximum Diameter Solids | .25 in. |
| Material | Plastic |
| Water Connection Type | NPT |
| Configuration | Submersible Pump |
| Switch Type | Snap Action |
| Submersible | Yes |
| Shutoff Head in Feet | 17 |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Plastic |
| Material Housing | Plastic |
| Approved for Commercial Use | Yes |
| Certifications | CSA |
| CARB approved | Yes |
| Frequency | 60 Hertz |
| Wattage | 316 |
| Voltage | 115 |
| Amperage | 4 |
| Horsepower | .33, .34 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
