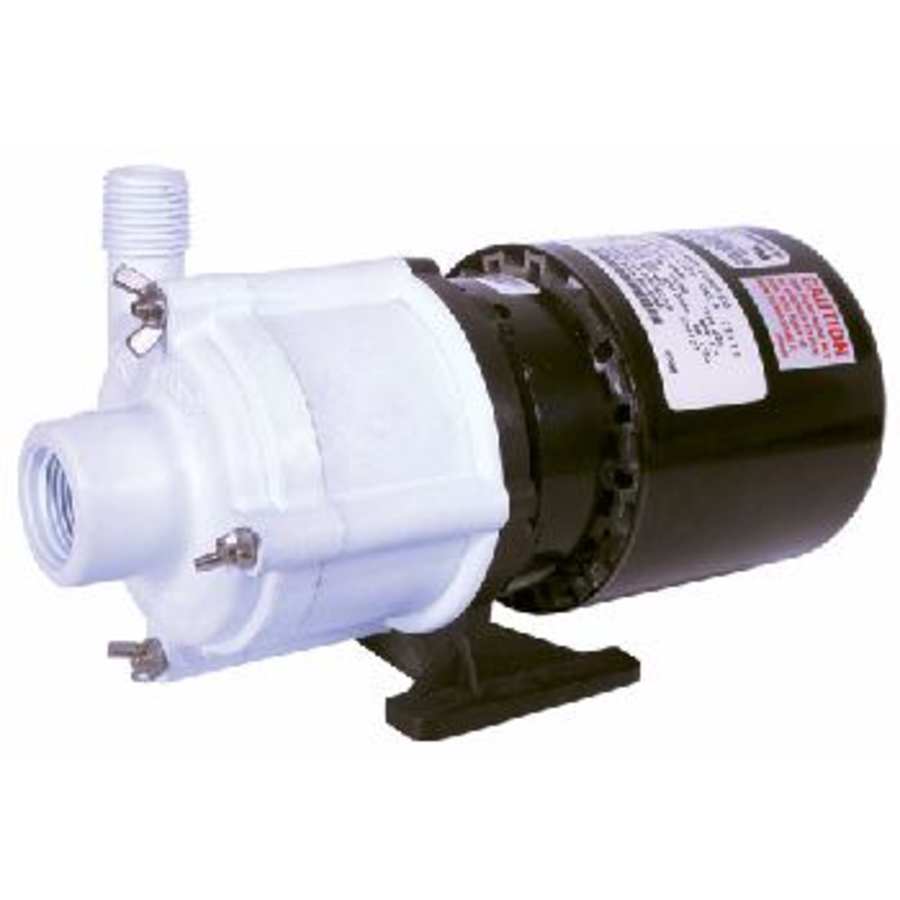

546 GPH Magnetic Drive Pump with 6′ Cord
Magnetically driven pump for mildly corrosive chemicals and solutions. The MD Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. Thermally protected open fan-cooled motor with ball bearings. 6 ft. power cord and 3-prong molded plug.
Specific Gravity – up to 1.1′
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 150F (66C).
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 4.3 in. |
| Width | 4 in. |
| Product Weight | 7.5 lbs. |
| Depth | 8.5 in. |
| Cord Length | 72 in. |
| Discharge Diameter | 0.5 in. |
| Flow Rate by Feet of Head | 9.8 gal / 1 ft, 8.2 gal / 6 ft, 9.1 gal / 3 ft, 2.5 gal / 15 ft, 6.5 gal / 9 ft |
| Shut Off Height | 16.1 in. |
| Shut Off Pressure | 7 |
Characteristics and Features
| Material | Plastic, Titanium |
| Configuration | Magnetic Drive Pump |
| Shutoff Head in Feet | 16.1 |
| Submersible | No |
Warranty and Product Information
| Certifications | CSA |
Electrical and Operational Information
| Voltage | 230 |
| Wattage | 100, 105 |
| Amperage | 0.64, 0.65 |
| Frequency | 50, 60 Hertz |
| Horsepower | 0.05 |
| Color | Steel |
| Color Tone | Steel Tones |
