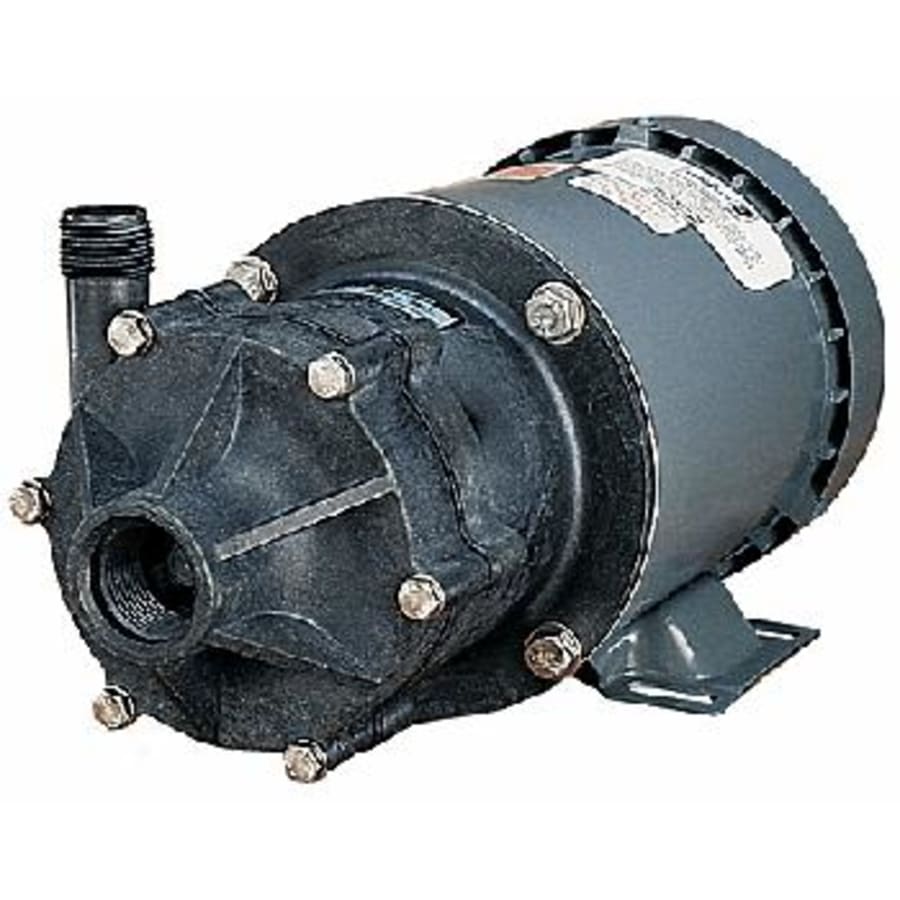

1/2 HP 2100 GPH 115/230V Magnetic Drive Pump with Mica Filled Bushing and without Cord
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-CK series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyvinylidene fluoride (e.g. Kynar(R)), Teflon, carbon, ceramic and Viton(R) parts. Thermally protected totally enclosed fan-cooled split phase motor with ball bearings. Conduit box (must be wired in field). Cord not included.
Specific Gravity – up to 1.1.
Ambient Air Temperature – up to 77F (25C).
Fluid Temperature – Up to 200F (93C).
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 7 in. |
| Width | 8.75 in. |
| Product Weight | 30 lbs. |
| Depth | 14.4 in. |
| Discharge Diameter | .75 in. |
| Flow Rate by Feet of Head | 33.7 gal / 10 ft, 35 gal / 5 ft, 17.5 gal / 40 ft, 30 gal / 20 ft, 24.6 gal / 30 ft |
| Shut Off Height | 49.1 in. |
| Shut Off Pressure | 21.3 |
Characteristics and Features
| Material | Plastic, Vitreous China |
| Configuration | Magnetic Drive Pump |
| Submersible | No |
Electrical and Operational Information
| Wattage | 340, 835 |
| Voltage | 115, 230 |
| Frequency | 50, 60 Hertz |
| Amperage | 9.4 |
| Horsepower | .5 |
Warranty and Product Information
| Certifications | CSA |
| Color | Steel |
| Color Tone | Steel Tones |
