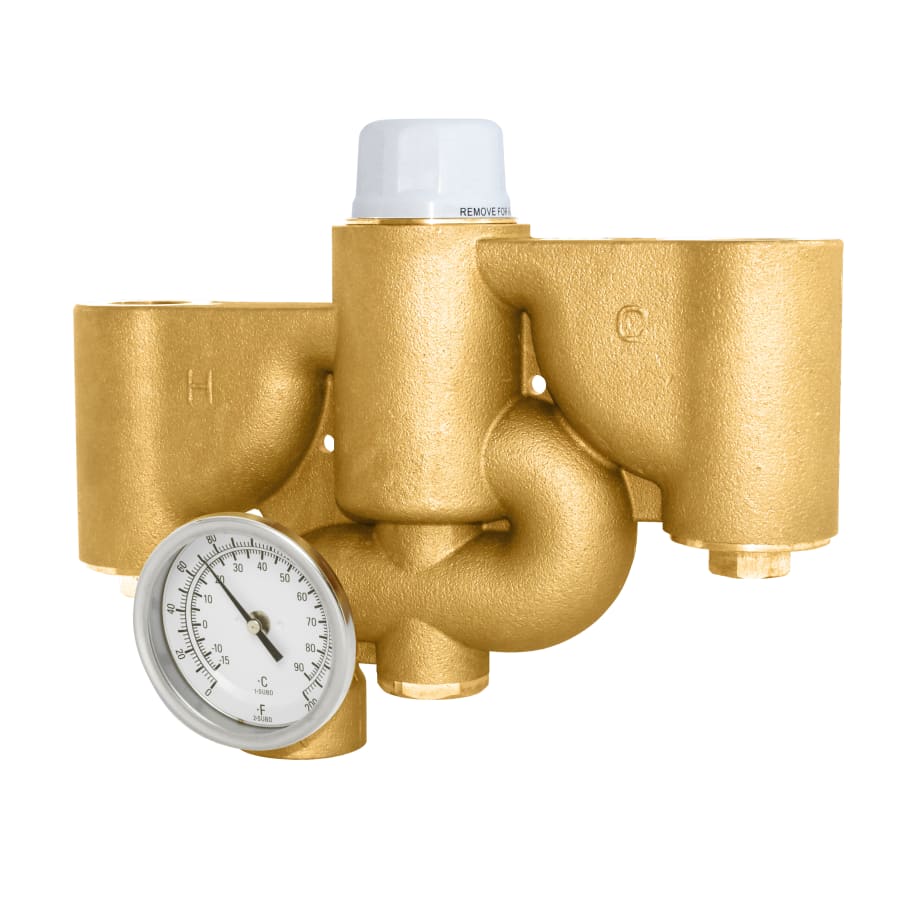

The Speakman STW-350 safe-t-zone thermostatic mixing valve is a high-quality, cost-effective solution for supplying tepid water to your emergency shower. Featuring a 62.5 gpm flow capacity, this mixing valve is able support multiple configurations of emergency stations, emergency showers or eye, eye/face washes totalling a flow of 50 gpm at 30 psi. Every safe-t-zone valve is preset to 85° f, but is equipped with an adjustable set point, enabling you to set a custom temperature limit ideal for your facility ensuring you are within ANSI/ISEA Z358.1 guidelines. The safe-t-zone valve provides 41.1 gpm cold water bypass in the event of a hot water failure and includes a positive shut-off when the cold water supply is lost. The Speakman safe-t-zone is constructed entirely of brass and is certified to ASSE 1071, CSA B125.3, ANSI/NSF 372 standards as well as being CUPC certified.
Speakman STW-350 Features:
Supports multiple configurations of emergency stations
Features 62.5 GPM flow capacity
Durable, solid brass construction
Equipped with an adjustable set point
Speakman STW-350 Specifications:
Height: 9-1/4″ (from top to bottom)
Width: 11-5/8″ (from left to right)
Length: 4-1/8″ (from back to front)
Valve Type: Thermostatic
Connection Type: NPT
Additional Speakman Links
View the Manufacturer Warranty
Browse all Speakman Products
Speakman Safe-T-Zone Collection
Specifications
| Height | 9.25 in. |
| Width | 11.625 in. |
| Length | 4.125 in. |
| Inside Diameter | 1 in. |
| Outside Diameter | 1.25 in. |
| Material | Brass, Stainless Steel |
| Water Connection Type | NPT |
| Certifications | ASSE, NSF, UPC, CSA |
| Country Of Origin | Canada |
| Approved for Commercial Use | Yes |
| CSA Code | B125.3 |
| ASSE Code | 1071 |
