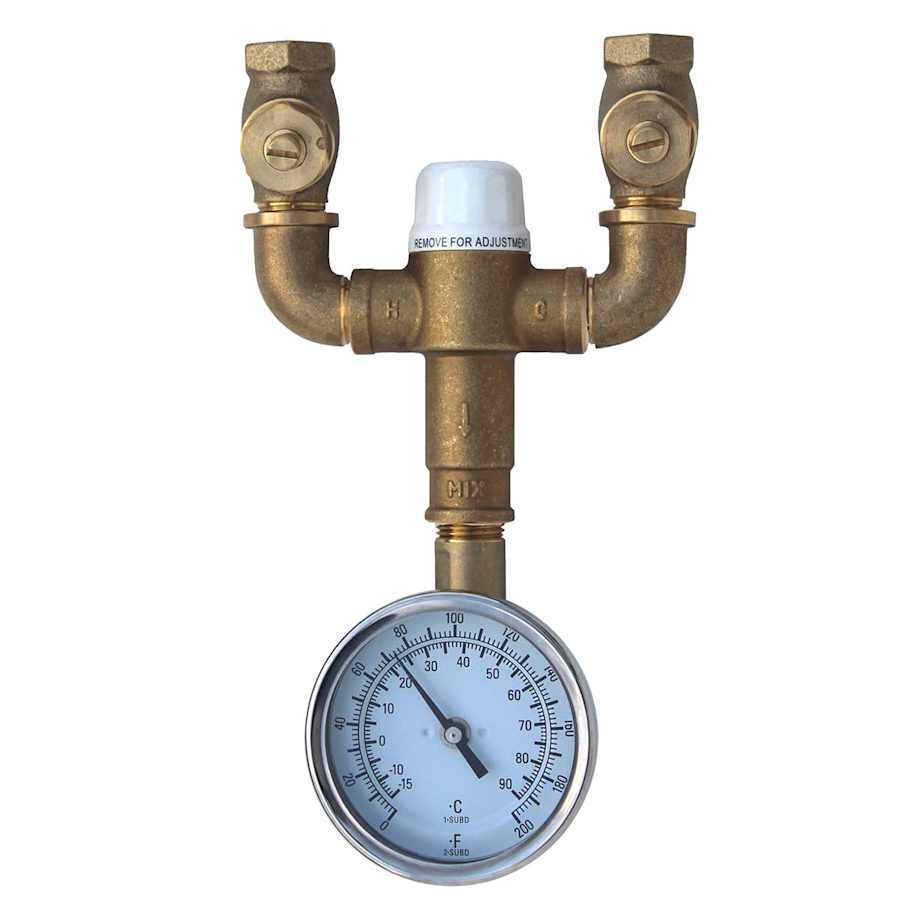

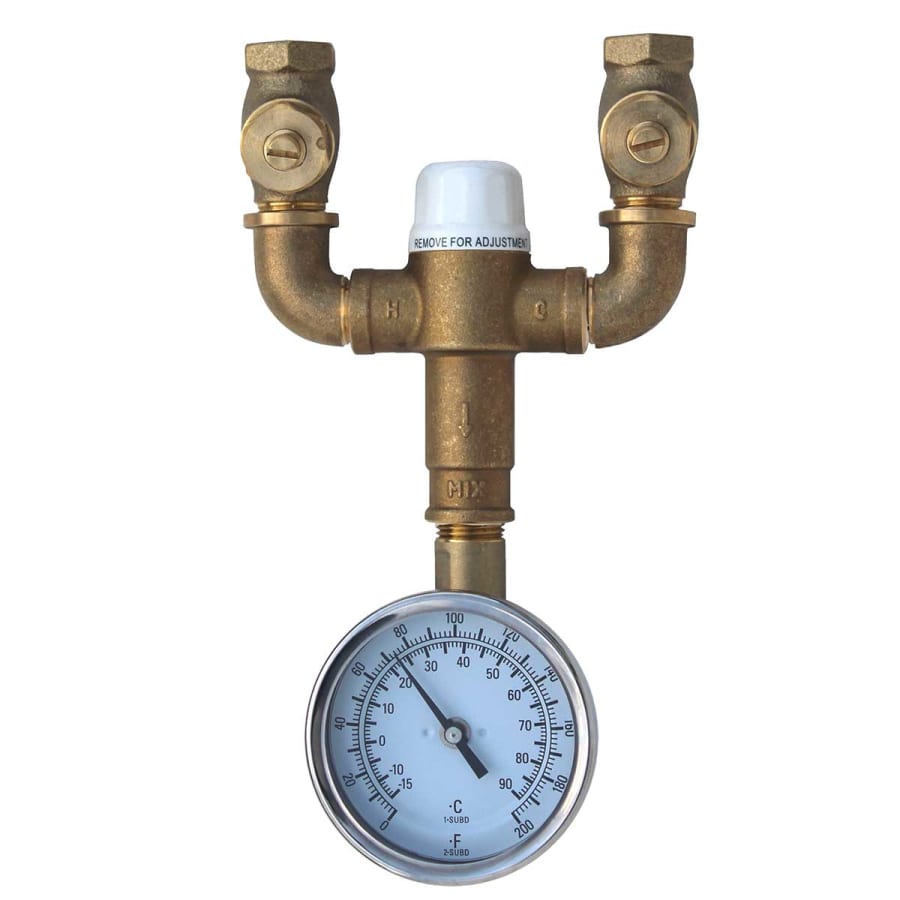

The Speakman safe-t-zone stw-370 thermostatic mixing valve is a high-quality, cost-effective solution for supplying tepid water to your emergency eyewash. Featuring a 9.7 gpm flow capacity, this mixing valve supports most single eye or eye/facewash stations at 30 psi. Every safe-t-zone valve is preset to 85°f, but is equipped with an adjustable set point, allowing you to set a custom temperature limit ideal for your facility. The safe-t-zone valve provides a 5.2 gpm cold water bypass in the event of hot water failure and includes a positive shut-off when the cold water supply is lost. The Speakman safe-t-zone is constructed entirely of brass and complies to ASSE 1071, CSA B125.3, NSA/ANSI 372 standards as well as being CUPC certified.
Speakman STW-370 Features:
Designed for single eye or eye/facewash stations
Features a 9.7 GPM flow capacity
Durable, solid brass construction
Equipped with an adjustable set point
Speakman STW-370 Specifications:
Height: 9-9/16″ (from top to bottom)
Width: 5-1/2″ (from left to right)
Length: 3-3/8″ (from back to front)
Valve Type: Thermostatic
Connection Type: NPT
Additional Speakman Links
View the Manufacturer Warranty
Browse all Speakman Products
Speakman Safe-T-Zone Collection
Specifications
| Height | 9.5625 in. |
| Width | 5.5 in. |
| Length | 3.375 in. |
| Inside Diameter | 0.5 in. |
| Outside Diameter | 0.5 in. |
| Material | Brass, Stainless Steel |
| Water Connection Type | NPT |
| Certifications | ASSE, NSF, UPC, CSA |
| Country Of Origin | Canada |
| Approved for Commercial Use | Yes |
| CSA Code | B125.3 |
| ASSE Code | 1071 |
