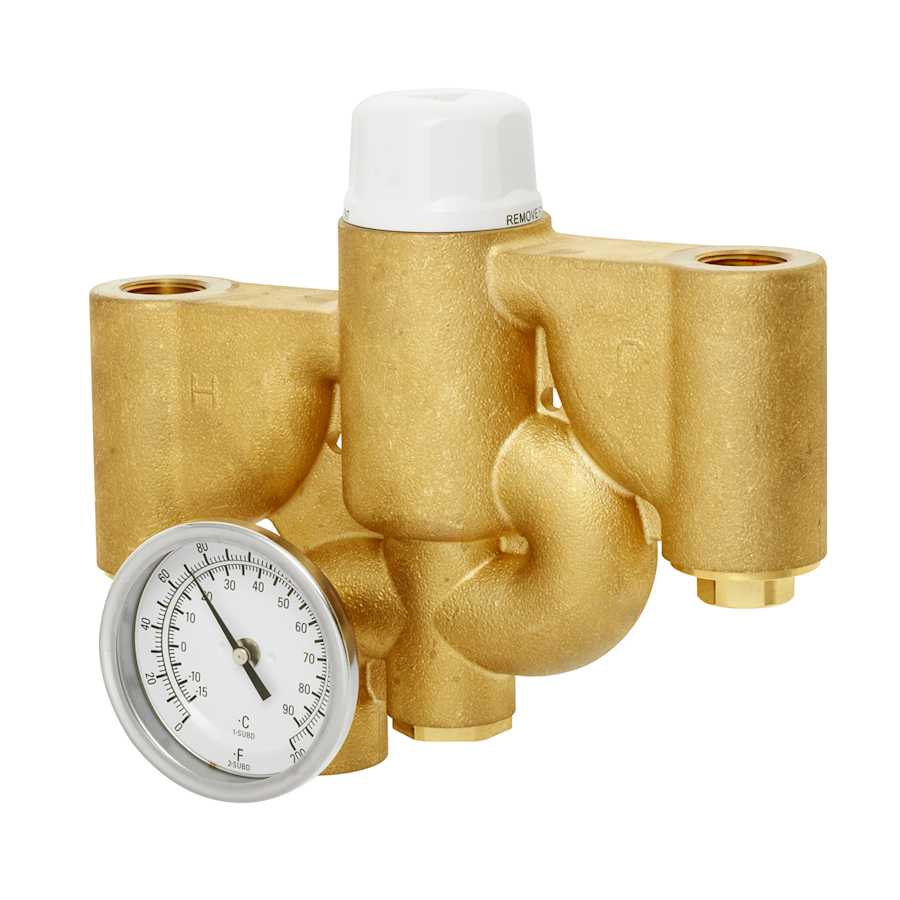

The Speakman STW-362 safe-t-zone thermostatic mixing valve is a high-quality, cost-effective solution for supplying tepid water to your emergency shower. Featuring a 38.0 gpm flow capacity at 30 psi. Every safe-t-zone is able to support an emergency combination station, an emergency shower, or multiple eye, eye/face washes. Valve is preset to 85° f, but is equipped with an adjustable set point, enabling you to set a custom temperature limit ideal for your facility ensuring you are within ANSI/ISEA Z358.1 guidelines. The safe-t-zone valve provides 24.9 gpm cold water bypass in the event of a hot water failure and includes a positive shut-off when the cold water supply is lost. The Speakman safe-t-zone is constructed entirely of brass and is certified to ASSE 1071, CSA b125.3, ANSI/NSF 372 standards as well as being CUPC certified.
Speakman STW-362 Features:
Supports multiple configurations of emergency stations
Features 38.0 GPM flow capacity
Durable, solid brass construction
Equipped with an adjustable set point
Speakman STW-362 Specifications:
Height: 8″ (from top to bottom)
Width: 9-3/8″ (from left to right)
Length: 4″ (from back to front)
Valve Type: Thermostatic
Connection Type: NPT
Additional Speakman Links
View the Manufacturer Warranty
Browse all Speakman Products
Speakman Safe-T-Zone Collection
Specifications
| Width | 9.375 in. |
| Height | 8 in. |
| Length | 4 in. |
| Inside Diameter | 0.75 in. |
| Outside Diameter | 1 in. |
| Material | Brass, Stainless Steel |
| Water Connection Type | NPT |
| Certifications | ASSE, NSF, UPC, CSA |
| Country Of Origin | Canada |
| Approved for Commercial Use | Yes |
| CSA Code | B125.3 |
| ASSE Code | 1071 |
