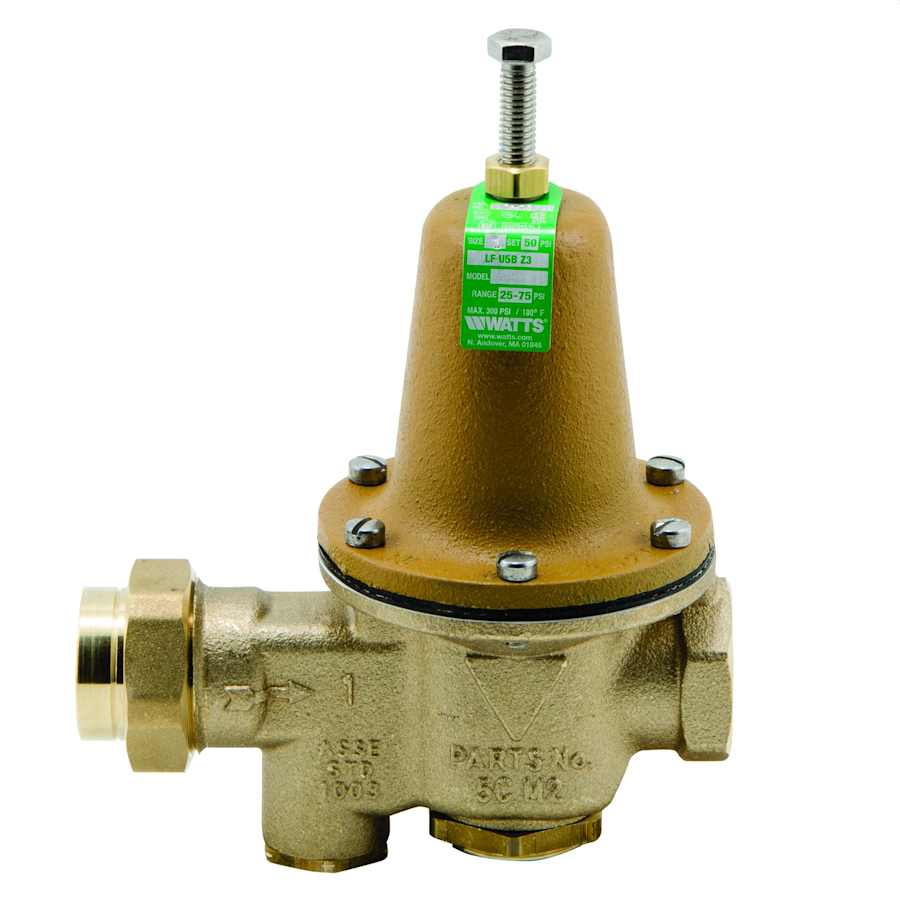

This 3/4″ high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body, 3/4″ NPT threaded female union inlet x NPT female outlet, replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
Watts 0009118 Features:
NPT female union X NPT female
Adjustable 25-75 PSI
Sealed spring cage with stainless steel cage screws
Integral stainless steel strainer removable for cleaning
Serviceable in line without special tools
High temperature resistant reinforced diaphragm for hot water
Additional Watts Links
Browse all Watts Products
Specifications
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Water Connection | 3/4" |
Reviews
There are no reviews yet.
