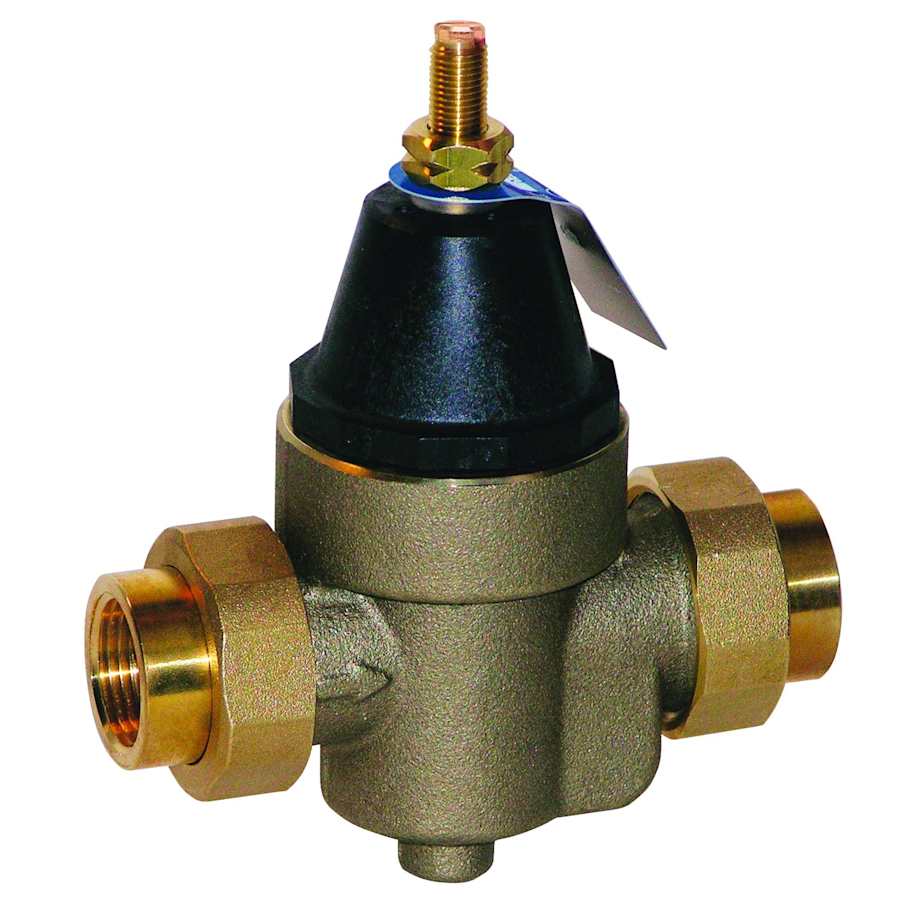

This 1″ lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, double union threaded female inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
Watts 0009491 Features:
Adjustable 25-75 PSI and Max Work 400 PSI
NPT threaded female union inlet and outlet
Integral stainless steel strainer removable for cleaning
Thermoplastic seat and cage
Sealed spring cage for accessible outdoor or pit installations
Additional Watts Links
Browse all Watts Products
Specifications
| Material | Brass |
| Approved for Commercial Use | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Water Connection | 1" |
