Universal Non-Integrated HSI Ignition Module

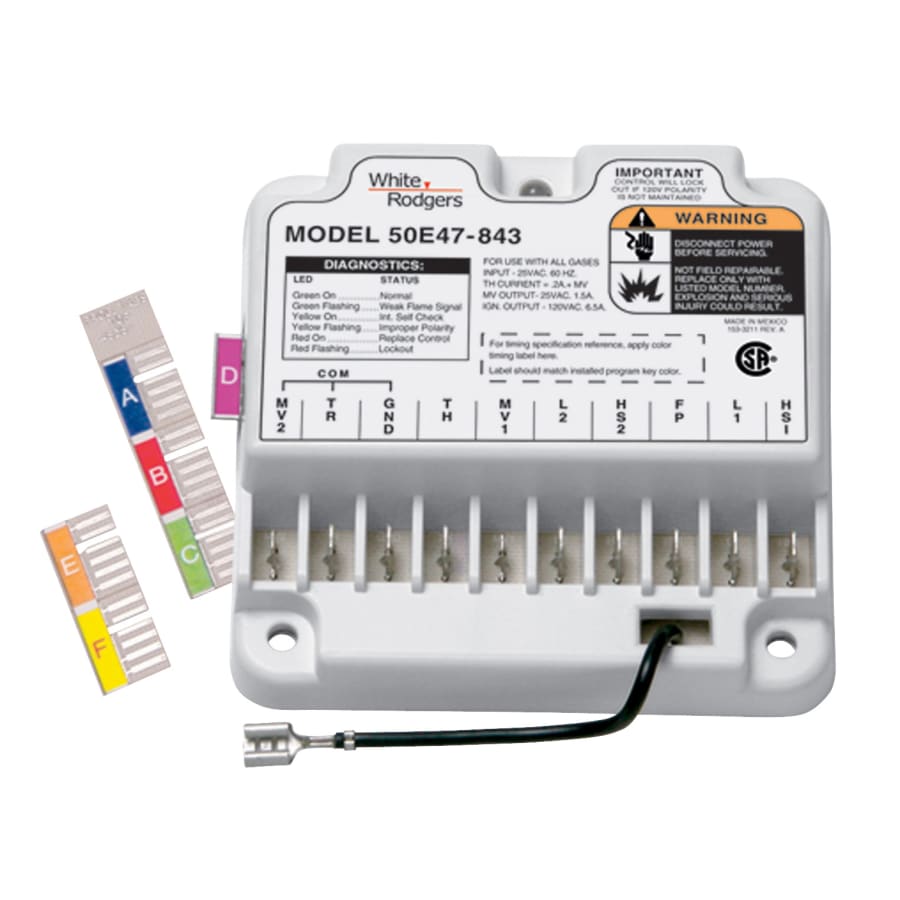

White-Rodgers furnace controls include the 50E47-843 universal non-integrated HSI ignition module, which replaces the White-Rodgers 50E47 modules many competitive silicon carbide, non-integrated modules.
Features:
A card port and six program keys to select the Trial for Ignition Time, Retries, Pre-purge and Igniter Warm Up timings
A Jumper to accommodate systems using Direct Sense (sensing through igniter) or Indirect Sense (using a Flame Sensor)
LED indicator for quick system and module diagnostics and troubleshooting
Universal Silicon Carbide Non-Integrated Replacement Module
Replaces All White-Rodgers 50E47-XXX modules
Kit Includes
Program Keys
Mounting Hardware
Double-Sided Foam Back Tape (for ease of installation)
Extensive Cross-Reference Guide
Color-Coded Timing Label
Pre-Printed Hanging Carton
Electrical Ratings:
Input Voltage: 18 to 30 VAC, 60 Hz
Current: 0.2 amp
Relay Contact Ratings:
Valve Relay: 1.5 amp @ 25 VAC 60 Hz 0.6 PF
Igniter Relay: 6.0 amp @ 120 VAC 60 Hz resistive
Flame Current Requirements:
Minimum current to insure flame detection: 2 µA DC
Maximum current for non-detection: 0.2 µA DC
Maximum allowable leakage resistance: 100 M ohms
Additional Specifications:
Operating Temperature Range: -40° to 175°F (-40° to 80°C)
Humidity Range: To 95% relative humidity (non-condensing)
Mounting: Surface mount or 4″ x 4″ junction box
Gases Approved: Natural, Manufactured, Mixed, Liquid Petroleum, and LP Gas Air Mixtures
White-Rodgers, a recognized leader in climate control solutions, celebrates 75 years of business in 2012. Experience, integrity and customer service are still the tenets that mark this great company. From the humble beginnings of two engineers collaborating to solve the control problem of the day, to being the answer for your climate control needs, White-Rodgers is the respected name among industry professionals and home owners alike.
Additional White-Rodgers Links
View the Manufacturer Warranty
Browse all White-Rodgers Products
White-Rodgers Furnace Controls Collection
Specifications
| Height | 4.13 in. |
| Depth | 1.5 in. |
| Width | 4.13 in. |
| Voltage | 18, 25, 30 |
| Amperage | 0.2 |
| Ignition Type | Intermittent Hot Surface Pilot |
| Application | Furnace Control |
| Color | White |
| Color Tone | Whites |
