Zoeller Simplex Sewage Package w/ M264 Pump, 4/10 HP, 2″ NPT Discharge, and 30″ Side Discharge Basin

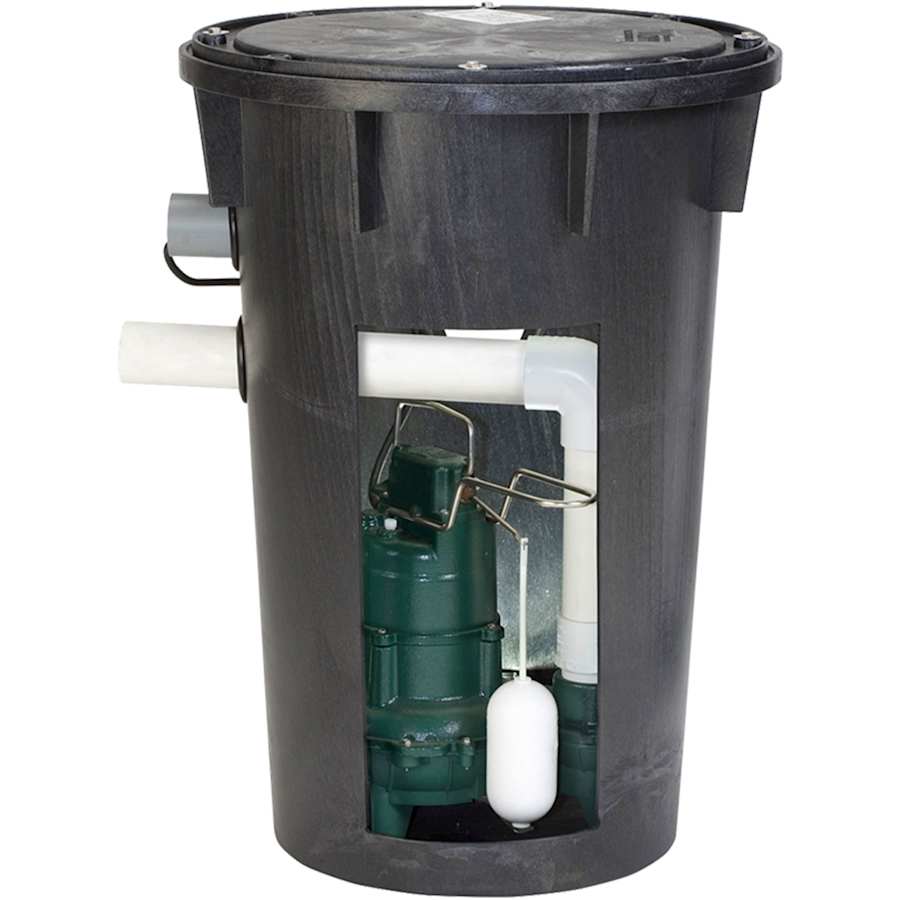

Model 912 is a preassembled sewage ejector package that comes with all of the key components required for installation. Built for outdoor installation, it is ideal for those looking to install a job ready sewage ejector system. Purchasing a job ready package reduces installation errors while minimizing cost. The model 912 sewage ejector package is designed for burial flush-to-grade. Since this particular model is for outdoor use all pipe penetrations are through the side of the basin.  The access cover is the only part that is visible after installation. The package comes preassembled in an 18″ x 30″ polyethylene structural foam (PSF) basin.  It includes model 264 automatic sewage pump.  The model 264 is a 4/10 HP pump.  The vortex impeller design of the model 264 allows the pump to pass 2″ spherical solids limiting the potential for clogging and unwanted downtime. The basin comes complete with a 2″ PVC discharge pipe that includes a predrilled 3/16″ weep hole to prevent the pump from becoming airlocked.   The basin’s cover includes a cord seal for the pump’s electrical cord along with a predrilled 2″ vent hole.  The cover is sealed in place prior to shipment.  The pre-plumbed 4″ inlet hub makes for a quick connection to the main sewage line. Each basin is filled with environmentally friendly packing peanuts prior to shipment to ensure things remain in place during transit.  The packing material is water soluble, so it will disappear on the first use.Job ready, fast, and easy installation!

Zoeller 53-0001 Features:

Package includes: Automatic sewage pump model M264, 18″ x 30″ ployethylene structural foam basin, cover, 2″ PVC discharge pipe, 30″ long, and 4″ pipe seal hub
Rated for outdoor burial up to 36″ grade
2″ solids handling pump
3/16 vent hole drilled
All units secured with a 2″ discharge pipe

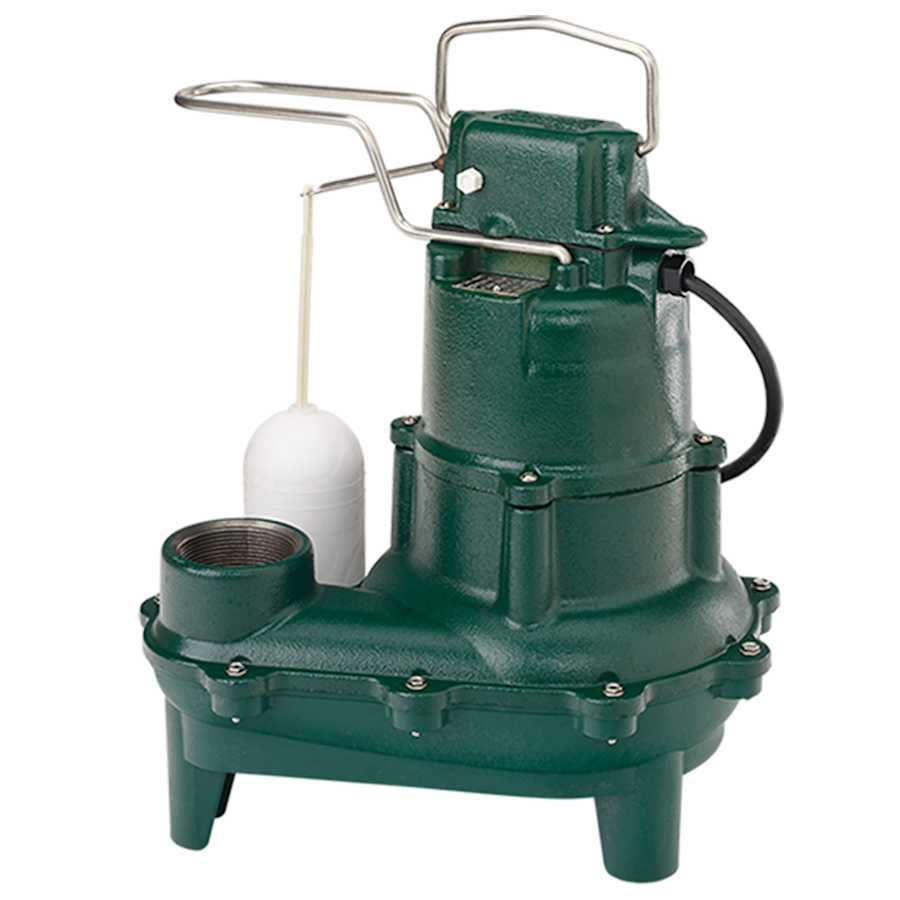

Zoeller Pump M264 Features:

Automatic, 2/5 HP, 115 Volts
Non-clogging vortex impeller design
Float operated, submersible (NEMA 6) 2-pole switch
Durable cast iron construction.  Cast iron switch cap, motor, and pump housing
Stainless steel screws. bolts, handle guard, arm and seal assembly
Engineered, glass-filled, plastic impeller with metal insert
UL listed 3-wire cord and plug.  15ft. cord finish
Corrosion resistant powder coated epoxy finish
Passes 2″ spherical solids
2″ NPT discharge
On point: 12-1/2″
Off point: 4-1/2″
Requires a check valve (sold separately) in order to reduce unnecessary cycling of pump.  Check valve options include: 30-0151, 30-0020, 30,0021, 30-0101, or 30-0103
